Application Areas：

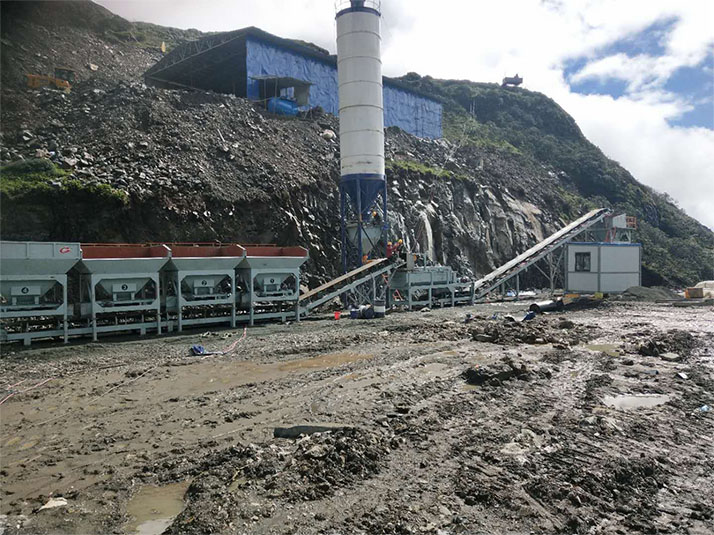

WBZ600 stabilized soil mixing station (mixing station) is a modular, detachable mixing equipment, with an hourly production of 600 tons. The main machine adopts a double-horizontal shaft continuous unlined plate mixer, which is easy to maintain, uniform mixing material and high production efficiency. The ingredients use electronic weighing or volume measurement, accurate and reliable measurement, the ratio changes rapidly, the computer control system to manage the whole process, manual, automatic selection, easy to operate, good reliability. Speed regulation adopts the international advanced frequency conversion speed regulation mode or electromagnetic speed regulation mode, which will save energy, stepless speed regulation, and fully ensure the reliability of equipment operation. Intelligent turbine flowmeter for water supply, accurate calculation, intuitive display.
(1) Cost saving and high efficiency
Adopt new mixing technology at home and abroad; Motor reducer, double horizontal shaft continuous mixer; Mixing shaft adopts shaft end sealing technology; Can effectively prevent bearing wear caused by leakage; High
production efficiency, cost saving, high value return;
(2) No worries about environmental protection
The use of high-energy bin top dust collector, closed dust removal cement discharge port to form negative pressure to prevent cement leakage in the discharge process; The belt conveyor can be designed to be closed according to customer needs to reduce aggregate drop;
(3) Intelligent technology
Intelligent technology configuration operation control cabinet, operation room; Microcomputer control manual, automatic two forms; Full automatic production, high degree of automation; Background automatic feeding system
integrating the functions of lifting, dividing, storing and feeding;
(4) Modular design
Easy to use, easy to install between modules, automatic control is conducive to saving labor costs; Easy maintenance of the whole machine; The belt conveyor is equipped with bilateral walkways and maintenance platforms, so that the use and maintenance is more humane: (5) accurate measurement
Accuracy less than 1%, in line with national standards; Weighing hopper weighing accuracy of powder and liquid to 1%;
(6) Cement silo
In line with industry standards, the warehouse body is made of steel plate and groove hoop, and the legs are welded with national standard pipe, which is firm and safe. Screw conveyor feeding design: speed regulation variable
frequency metering impeller feeding machine; Material level sensing equipment, can know the use of materials in the warehouse at any time;

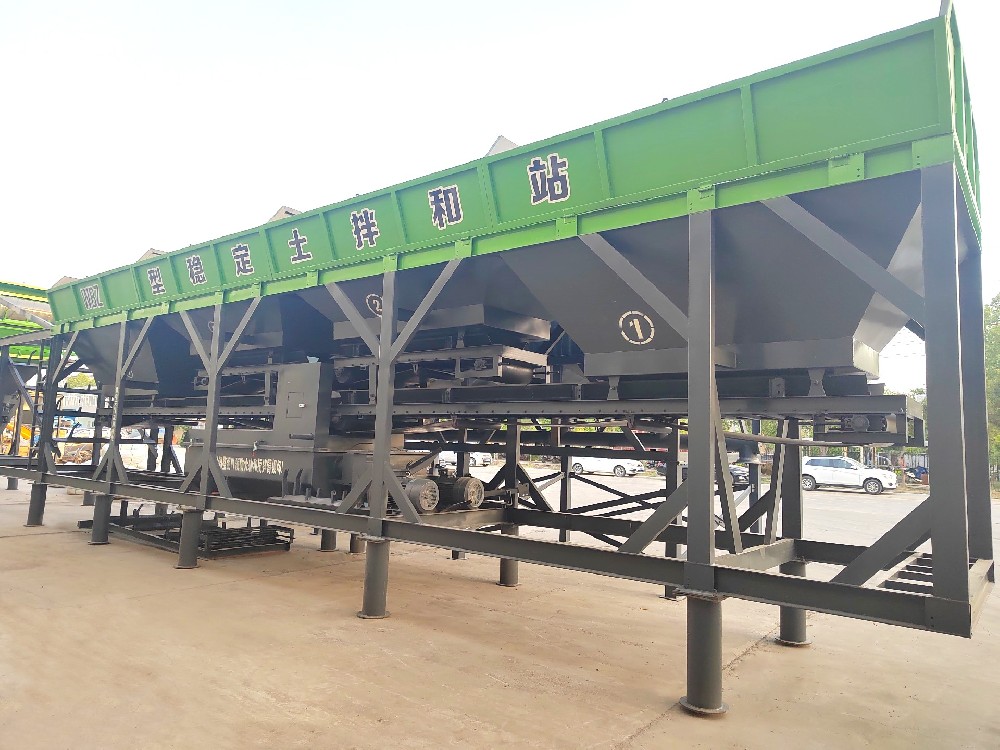

The aggregate and finished material conveyor adopts seamless vulcanized joint ring tape or large-angle wavy belt, compact structure, stable operation, reliable, not easy to run, effectively improve the service life of the belt, the bone bin adopts building block or modular combination, flexible and mobile, can mix gravel stabilized soil, gray soil stabilized soil, It is suitable for the construction of basic materials such as expressway, [class highway, Class II highway, urban road, airport, sports field, etc., and can use raw materials such as quicklime, hydrated lime (water content 10-1596), soil, sand, fly ash, cement, etc., to produce basic materials such as lime soil.
Project | Maximum productivity | Measurement method | Speed regulation mode | control mode | Quantify precision | Power | Weight | |||
WBZ600 | 600t/h | Volume measurement Computer measurement | frequency control Electromagnetic speed regulation | automatic | Manual | aggregate | Powder | water | 170.5kw | 54t |
