WBZ300 mobile stabilized soil mixing station

　　(1) Cost saving and high efficiency

　　Strong mobility, flexible combination form, suitable for differentoccasions; Adopt new mixing technology at home and abroad; Motor reducer, doublehorizontal shaft continuous mixer: the mixing shaft adopts shaft end sealing
technology; Can effectively prevent bearing wear caused by leakage;

　　(2) No worries about environmental protection

　　Use high energy bin top dust collector, closed dust removal; The cementdischarge port forms negative pressure to prevent cement leakage during the discharge process; The belt conveyor can be designed to be closed according to customer needs to reduce aggregate drop:

　　(3) Intelligent technology

　　Configure operation control cabinet and operation room; Microcomputer control manual, automatic two forms; Automatic production, high degree of automation: set lifting, dividing, storage, feeding functions of the background
automatic feeding system;

　　(4) Modular design

　　Easy to use, easy to install between maintenance modules, automatic control is conducive to saving labor costs: the machine maintenance is convenient: the belt conveyor is equipped with bilateral walkways and maintenance platforms, so that the use and maintenance are more humane: (5) accurate measurement

　　Accuracy less than 1%, in line with national standards; Weighing hopper weighing accuracy to 1% for powder and liquid:

　　(6) Cement silo

　　In line with industry standards, the warehouse body is made of steel plate and groove hoop, and the legs are welded with national standard pipe, which is strong and safe: screw conveyor feeding design; Speed control variable frequency metering impeller feeder; Material level sensing equipment, can know the use of materials in the warehouse at any time;

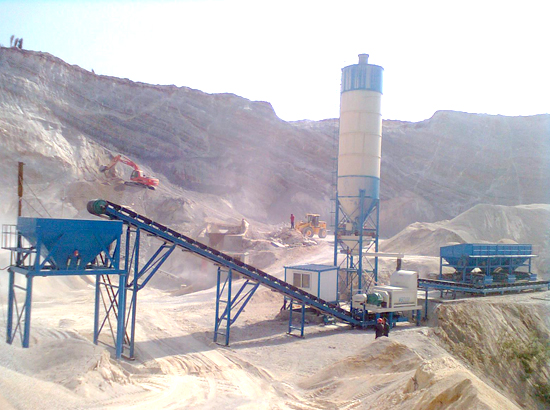

　　WBZ300 stabilized soil mixing station is a volumetric measurement variable frequency speed regulating stabilized soil mixing station, the stabilized soil mixing station equipment is an economic and practical stabilized soil mixing
equipment, rated productivity of 400 tons per hour, the use of computer dynamic and measurement (or volume measurement), with accurate measurement, high productivity, stable performance and quality. The mixing station is suitable for continuous operation with large flow rate, and is mainly used for mixing the basic stable materials of constructing high-grade highways, urban roads, airports, ports and other projects.
