Application Areas：

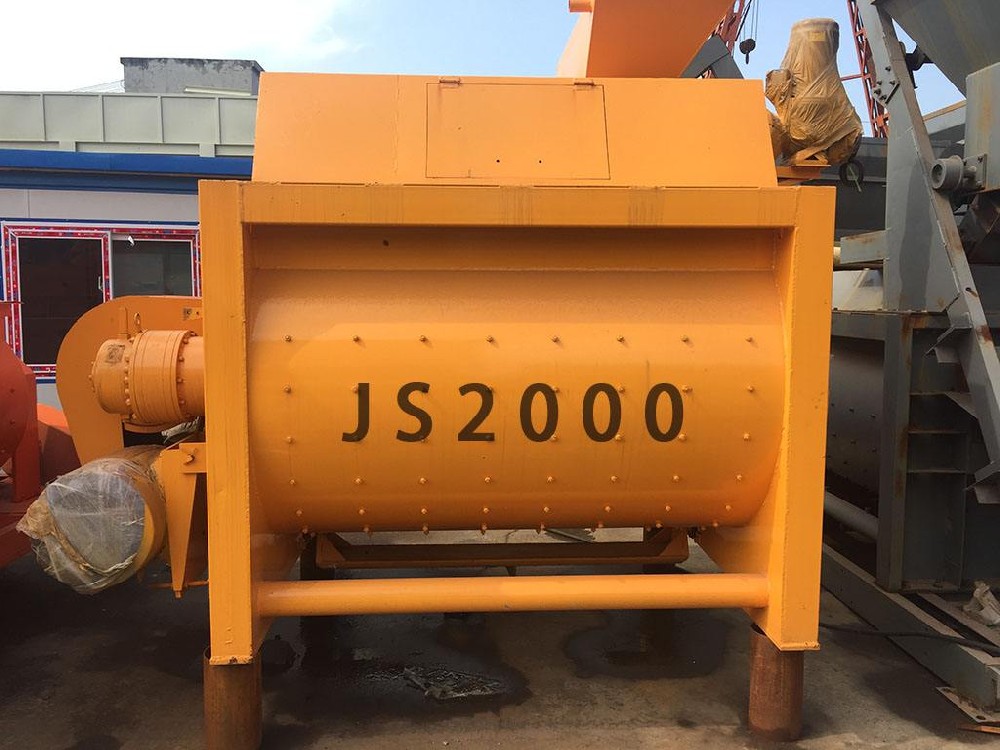

The JS2000 forced concrete mixer discharges 2 cubic meters at a time, also known as a 2-cubic concrete mixer and a two-cubic mixer. The JS2000 mixer has a discharging cycle of 60 seconds and is usually used as the mixing host of a 120 mixing station. JS2000 host machine is currently an advanced and ideal construction equipment model at home and abroad. Its mixing system is composed of motor, pulley, reducer, open gear, mixing drum mixing device, oil supply device, etc.
Performance advantages
1. "High stability" mixing system
Low noise, low noise; synchronous control, the lining plate adopts trapezoidal design, and the blades adopt high wear-resistant alloy wear-resistant cast iron to avoid the problem of powder mixing and shaft sticking; fast mixing speed
2. Unloading system
Connection control, driven by a hydraulic system; different unloading speeds can be achieved; compared with pneumatic transmission, it has the characteristics of compact structure; smooth action, accurate door opening
positioning; and the ability to manually open the door.
3.Sealing system
The valve shaft end and wind pressure seal protection device effectively prevent slurry leakage; the integrated shaft mixing design and metering boxconnection length ensure more stable operation.
4. Soothing oils
The lubrication system uses an electric pump to provide centralized oil lubrication, and the electric oil pump lubricates through a progressive distributor; the grease has high pressure, high viscosity and low oil consumption, which reduces the contamination of the concrete by the grease.
5. Sensing system
The planetary gear reduction transmission has a compact structure, stable transmission, low noise, and long service life; the system structure is relatively compact, the return clearance is small, and it has the
characteristics of high precision and large rated output signal.
6. Electrical system
The electronic control circuit is designed with air switches, fuses, and thermal relays, with short-circuit and overload protection functions; the spare box is designed with a door lock, which is safe, reliable, and easy to operate
and maintain.
The JS2000 forced concrete mixer discharges 2 cubic meters at a time, also known as a 2-cubic concrete mixer and a two-cubic mixer. The JS2000 mixer has a discharging cycle of 60 seconds and is usually used as the mixing host of a 120 mixing station. JS2000 host machine is currently an advanced and ideal construction equipment model at home and abroad. Its mixing system is composed of motor, pulley, reducer, open gear, mixing drum mixing device, oil supply device, etc.
Project | Discharge capacity | Feed capacity | Theoretical productivity | Maximum granule of aggregate （Lithotripsy/Pebble） | Working cycle time | Power of stirred motor | Speed of stirred motor | Shape size （Length, width and height） |
JS2000 | 2000L | 3200L | ≤120m³/h | ≤80/100 | 60（S） | 2×37KW | 24.5（r/min） | 3500×2400 ×2125 |
