Application Areas：

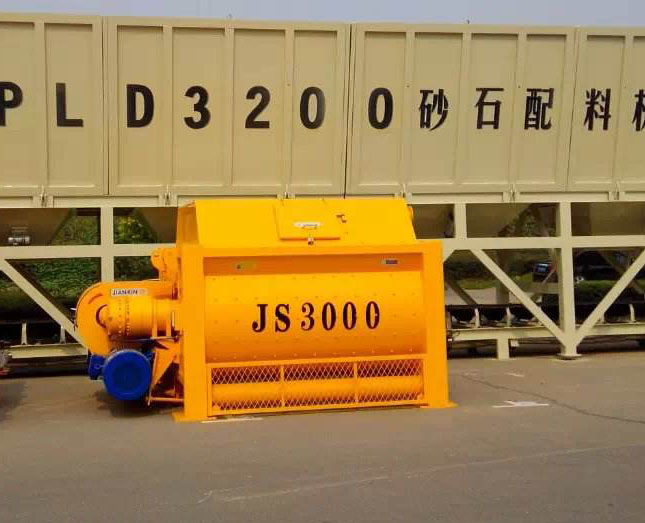

The JS3000 twin-shaft series forced concrete mixer discharges 3 cubic meters per time. It is also called a 3-cubic concrete mixer. The cycle period is 72S. This machine is used in the host of the 180 mixing station. The JS3000 forced mixer is a large-scale concrete mixer. No. of concrete mixing machinery. Commonly used in mixing stations, the JS3000 concrete mixer has the dual advantages of operating independently as a stand-alone machine and forming a simple concrete mixing station with the PLD series batching machine. It can also provide a supporting host for the mixing station and is suitable for all types of large, medium and small.
Performance advantages
1. "High stability" mixing system
Low noise, low noise; synchronous control, the lining plate adopts trapezoidal design, and the blades adopt high wear-resistant alloy wear-resistant cast iron to avoid the problem of powder mixing and shaft sticking; fast mixing speed
2. Unloading system
Connection control, driven by a hydraulic system; different unloading speeds can be achieved; compared with pneumatic transmission, it has the characteristics of compact structure; smooth action, accurate door opening
positioning; and the ability to manually open the door.
3.Sealing system
The valve shaft end and wind pressure seal protection device effectively prevent slurry leakage; the integrated shaft mixing design and metering boxconnection length ensure more stable operation.
4. Soothing oils
The lubrication system uses an electric pump to provide centralized oil lubrication, and the electric oil pump lubricates through a progressive distributor; the grease has high pressure, high viscosity and low oil consumption, which reduces the contamination of the concrete by the grease.
5. Sensing system
The planetary gear reduction transmission has a compact structure, stable transmission, low noise, and long service life; the system structure is relatively compact, the return clearance is small, and it has the characteristics of high precision and large rated output signal.
6. Electrical system
The electronic control circuit is designed with air switches, fuses, and thermal relays, with short-circuit and overload protection functions; the spare box is designed with a door lock, which is safe, reliable, and easy to operate
and maintain.
Prefabricated component factories and large-scale industrial and civil construction projects such as highways, bridges, water conservancy, and docks. JS3000 concrete mixer can be combined with different types of cement silo PLD series batching machines to form simple concrete mixing stations and double concrete mixing stations. It has powerful power and high production efficiency.
Project | Discharge capacity（L） | Feed capacity（L） | Theoretical productivity（m³/h） |
JS3000 | 3000L | 4800L | ≤150m³/h |
