Application Areas：

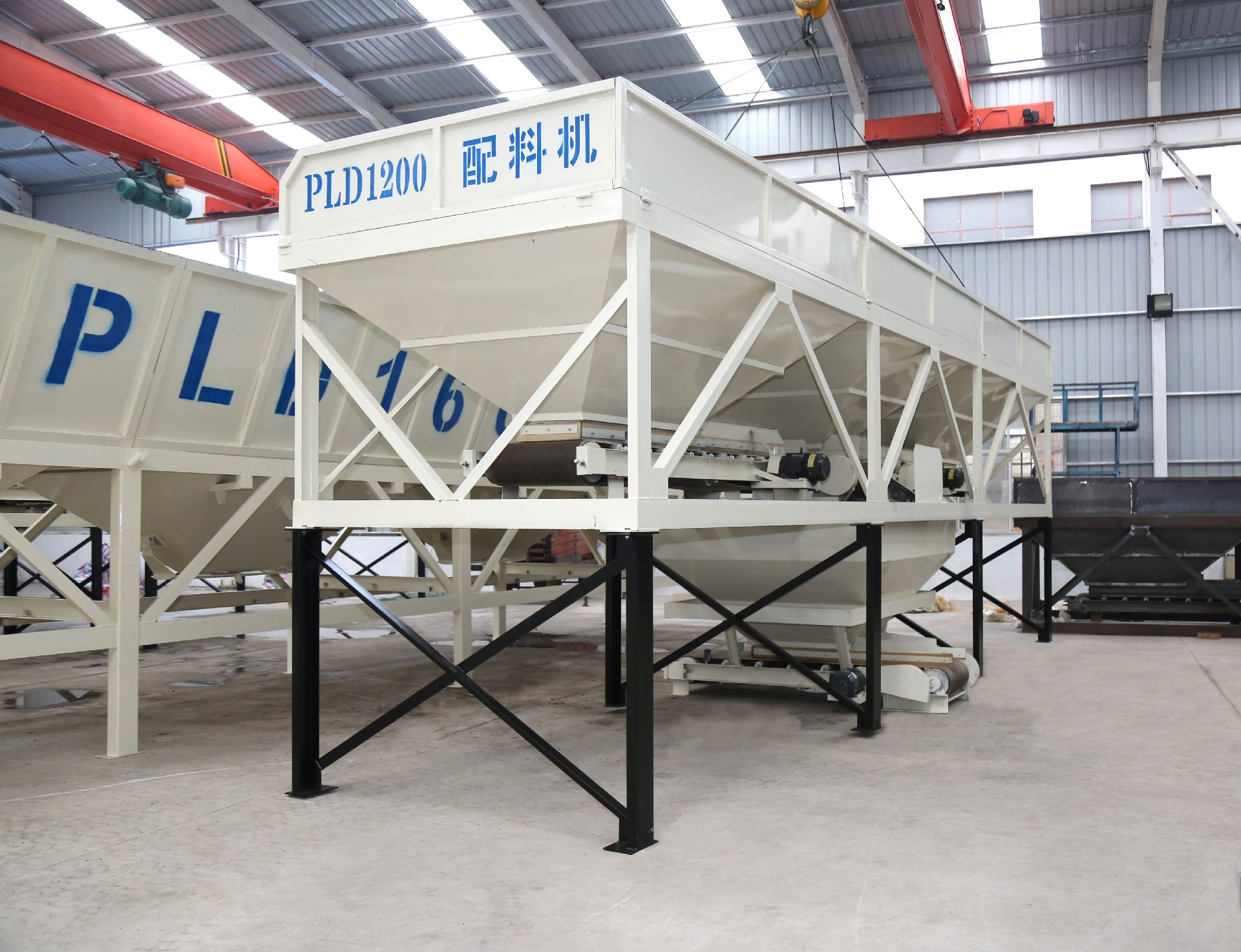

PLD1200 concrete batching machine adopts a sand and gravel batching device
for loading by a loader or a belt conveyor. It can batch more than three kinds
of materials and can be used in conjunction with various types of mixers and
other metering devices to form a fully automatic and semi-automatic mixing
station. This machine can effectively ensure the accuracy of the mix ratio of
cement, sand, gravel, etc., and the use of an electronic weighing system further
improves the accuracy of weighing. The top panel of our company's batching
machine can be lowered or scattered as needed, which can greatly reduce the
labor intensity of the loading part and increase the convenience of
construction.
(1) Large storage bin design
The storage bin has a large volume, which reduces the number of times the loader loads materials later. The storage bin is equipped with a screen to prevent large-size aggregates from entering the main mixer, ensuring safe and
reliable operation.
(2) Humanized design
Easy to operate. Designed in accordance with GB10171 "Concrete Mixing Station (Building)" standard, it is so easy to operate that you only need to press one button each time; the bin door unloading angle is optimized, and the
double-leaf door form ensures smooth unloading.
(3) Strong site adaptability and easy installation
It can be combined with a mixer to form a mixing station of different forms (straight or L-shaped) and different specifications. The cost is only 1/3 of the mixing station of the same specification, and it is very convenient to move and install.
(4) Accurate weighing and high batching accuracy
Electronic weighing, microcomputer control, digital display, remote control operation, with the advantages of accurate weighing, high batching accuracy, fast speed, and strong control function.
PLD1200 concrete batching machine adopts a sand and gravel batching device for loading by a loader or a belt conveyor. It can batch more than three kinds of materials and can be used in conjunction with various types of mixers and other metering devices to form a fully automatic and semi-automatic mixing station. This machine can effectively ensure the accuracy of the mix ratio of cement, sand, gravel, etc., and the use of an electronic weighing system further improves the accuracy of weighing. The top panel of our company's batching machine can be lowered or scattered as needed, which can greatly reduce the labor intensity of the loading part and increase the convenience of construction.
model | Weighing hopper capacity | Storage hopper capacity | productivity | Batching accuracy | Weighing value | Number of ingredients | Feeding height | Feeding belt speed | power | Total capacity | Overall dimension |
PLD800 | 800L | 2×1.5m³ | 48m³/h | ±2% | 2000 | 2-3species | 2400 | 3 | 3×3 | 2450 | 6000×2000 |
PLD1200 | 1200L | 4×2.5m³ | 56m³/h | ±2% | 3000 | 2-4species | 3000 | 1 | 5×3 | 4500 | 9500×2200× |
PLD1600 | 1600L | 4×5m³ | 75m³/h | ±2% | 3000 | 2-5species | 2900 | 1 | 5×3 | 5600 | 12000×2200× |
PLD2400 | 2400L | 4×10m³ | 120m³/h | ±2% | 4000 | 2-5species | 2900 | 1.6 | 11 | 85000 | 10000×3000× |
PLD3200 | 3200L | 4×18m³ | 160m³/h | ±2% | 5000 | 2-5species | 2300 | 1.6 | 11 | 10500 | 14500×3000× |
PLD4800 | 4800L | 4×25m³ | 160m³/h | ±2% | 8000 | 2-5species | 2300 | 1.25 | 11 | 14000 | 15520×3900× |
