Application Areas：

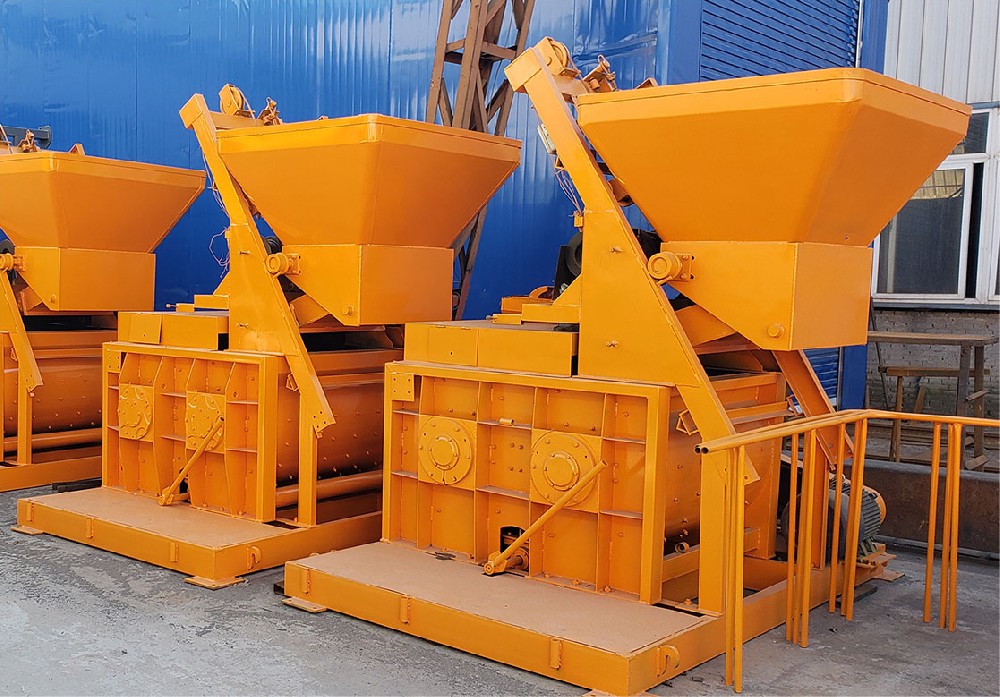

JS750 twin-shaft forced mixer discharges 0.75 cubic meters each time,Also called 0.75 forced mixer,Productivity per hour 35m³/h,Usually used as the mixing host of HZS35 concrete mixing plant,This machine has the dual advantages of operating independently as a stand-alone machine and forming a simple concrete mixing station with the PLD concrete batching machine.Still available mixing station provides supporting hosts. Due to different selected configurations, there is a significant gap in theoretical productivity. Users can choose the appropriate configuration according to actual needs.
Performance advantages
1. Stirring system
High alloy wear-resistant material, uniform mixing and stable; multiple shaft end sealing protection technology, no leakage of slurry, high production efficiency and long service life.
2. Unloading system
Divided into: hydraulic control, pneumatic control, manual control, through the cylinder or hydraulic cylinder, the motorized unloading hopper is realized
3. Water supply system
The throttle valve can adjust the flow of water; the total water supply is adjusted by the time relay
4. Electrical system
It has the functions of short circuit protection and overload protection; the insulating plate design is safe and reliable, and is easy to operate and maintain.
5. Reduced motor
Decrease the speed while increasing the output torque. Multiply the motor output by the reduction ratio to reduce the load inertia.
6. High degree of automation
The operating platform in the control room performs various automated operations, and computer monitoring can vividly reflect the entire production process and the conditions of each part.
JS750 twin-shaft forced mixer discharges 0.75 cubic meters each time,Also called 0.75 forced mixer,Productivity per hour 35m³/h,Usually used as the mixing host of HZS35 concrete mixing plant,This machine has the dual advantages of operating independently as a stand-alone machine and forming a simple concrete mixing station with the PLD concrete batching machine.Still available mixing station provides supporting hosts. Due to different selected configurations, there is a significant gap in theoretical productivity. Users can choose the appropriate configuration according to actual needs.
Project | Discharge capacity | Feed capacity | Theoretical productivity | Maximum granule of aggregate （Lithotripsy/Pebble） | Speed of mixing blade | Power of agitator | Improve motor power | Pump motor power | Shape size （Length, width and height） | |
JS750 | 750L | 1200L | ≤35m³/h | ≤40/60 | 31（R/min） | 2×7（number） | 30KW | 7.5KW | 1.1KW | 5025×3100 ×5680 |
