Application Areas： Widely used in roads, airports, ports, hydropower and other projects and precast components, commercial concrete and other generous concrete production.

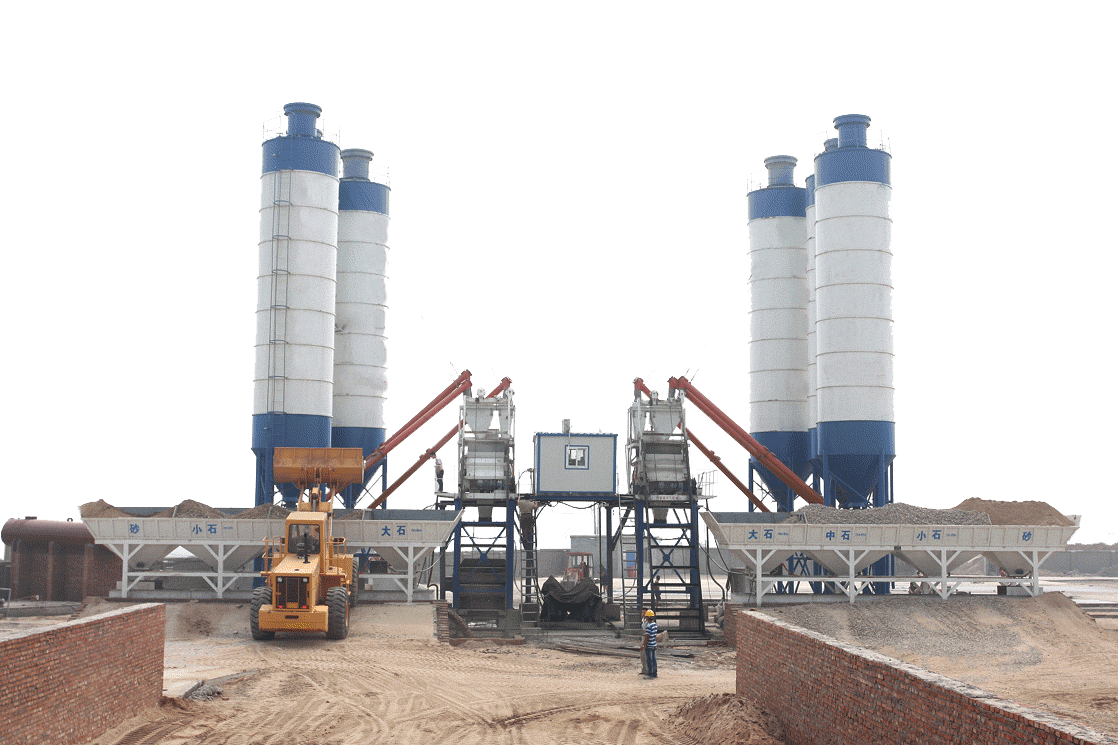

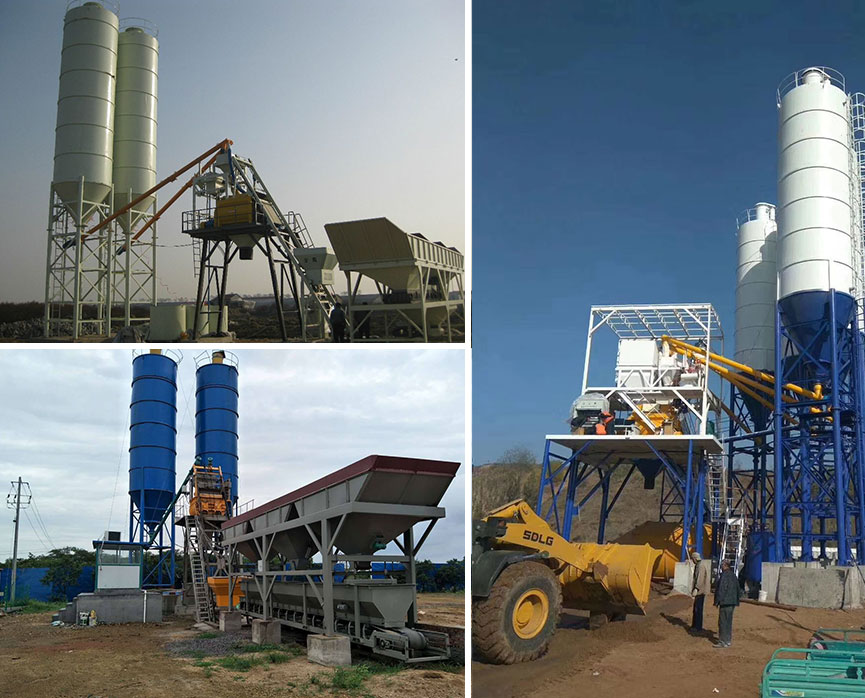

HZS25 concrete mixing plant, is a compulsory, efficient equipment, can produce plastic, dry and hard concrete and other concrete, high production efficiency, widely used in large and medium-sized building construction, road and bridge projects and production of concrete products in the precast plant, is the ideal equipment for the production of commercial concrete. The main machine of the mixing system adopts JS series double horizontal shaft forced mixer, which has good uniformity of mixing concrete, short mixing time, long service life of wearing parts, easy operation and maintenance. It adopts the control technology of electronic weighing, microcomputer control, digital display and other new design ideas. Electronic weighing buffer device and free double horizontal shaft mixer, batching machine and related equipment flexible combination, this simple mixing plant has a single independent use and PLD series batching unit into a production capacity of 25m3/h or more of the double advantages of concrete mixing plant, and simple structure, easy to disassemble, convenient construction.
1. Quick installation
Can choose to assemble steel beam or fixed, steel beam mixing plant mixing main system from unloading to installation only a few hours, together with the control room, batching station and other supporting facilities installation as long as two to four days can be ready for production.
2. Design properly
Mixing platform, metering platform and lifting system platform fully ensure the inspection and maintenance equipment to seek. When an external protective layer is required, it still provides enough daily working space.
3. Small footprint

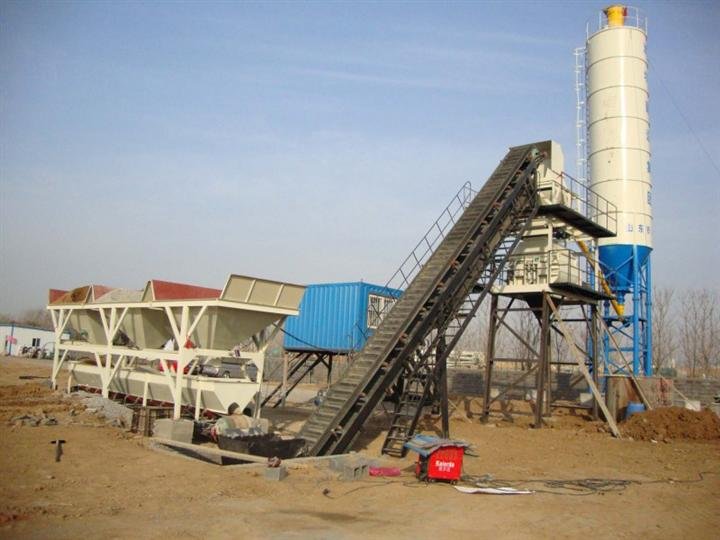

The HZS25 concrete mixing plant uses the method of lifting hopper to load, and the unique design of hopper and track can efficiently load and dump aggregates, greatly reducing the site occupation area.
4. Less investment, simple maintenance
HZS25 concrete mixing plant requires less investment, occupies a small site, uses less equipment, equipment maintenance is simple, equipment operation is safe and convenient.
The aggregate is discharged into the aggregate metering bucket by the unloading door of the bone bin of the batching station for measurement. After the measurement is completed, the aggregate is unloaded onto the far-rotating flat belt, which is sent to the inclined belt machine, which is transported to the waiting hopper at the upper part of the mixer for instruction. Meanwhile, cement and fly ash are transported to their respective metering buckets by the screw conveyor for measurement. Water and admixtures are respectively sent to the respective metering bucket by the pump and admixture pump for measurement, after the measurement of various materials, the control system issued instructions to begin to feed into the mixer for mixing, after the completion of mixing, open the discharge door of the mixer, the concrete is unloaded into the mixing transport through the discharge hopper, and then enter the next working cycle.
project | Maximum productivity | Mixer model | Batcher model | Discharge height | Working cycle time | Weighing accuracy | |||
HZS25 | 25m3/h | JS500 | PLD800 | 3800（mm） | 72（S） | aggregate 2% | cement 1% | water 1% | Additives 1% |
