Application Areas：

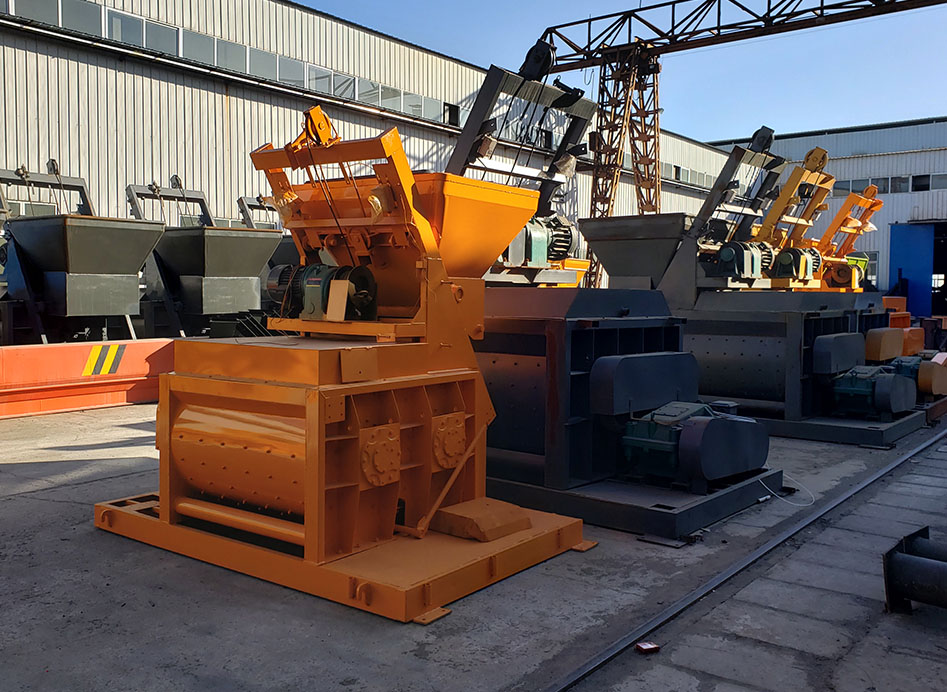

JS1000 forced concrete mixer, also known as a cubic mixer, is a twin-shaft forced mixer series,The theoretical productivity is 60m³/h per hour, and it is mostly used as the mixing host in HZS50 mixing station and HZS60 mixing station. The JS1000 forced mixer can be used alone or combined with different models of PLD series batching machines to form a simple concrete mixing station. It can be used for mixing dry hard and plastic lightweight aggregate concrete and various mortars and mortars. It is suitable for various construction projects and Medium and small prefabricated component factories.
Performance advantages
1. "High Stability" Mixing System
Low energy consumption and low noise; fully automatic control, the liner adopts trapezoidal design, and the blades are made of high wear-resistant alloy wear-resistant cast iron to avoid the problem of mixing powder sticking to the axis; the mixing speed is fast and uniform
2. Reducer
Planetary gear reducer or cycloidal gear reducer can be installed; planetary gear: transmitted through the belt, which can avoid damage to other components; cycloid gear: transmitted through the impact force of the gear, which can generate powerful power to drive the machine
3. Circuit system
The motor control parts are all in the electric box; it consumes less electricity and has strong power; it is safe and reliable, and it is easy to operate and maintain.
4. Flexible feeding method
Materials can be loaded by hopper or belt conveyor, with flexible configuration, cost saving and to meet different customer needs.
5. Unloading system
Fully automatic control, hydraulic system drive; can achieve different unloading speeds; compared with the pneumatic form of transmission, it has a compact structure; smooth movement, accurate door opening positioning; and the ability to manually open the door, etc.
6. Water supply system
The water supply system consists of a motor, a water pump, a throttle valve cleaning device, a water spray pipe, etc.; the water pump sends the water to the water spray pipe through the throttle valve; the throttle valve can adjust the flow of water
JS1000 twin-horizontal forced concrete mixer consists of loading, mixing, unloading, water supply, electrical, cover, chassis, supporting gears and other parts. The JS1000 concrete mixer has two mixing shafts with mixing blades that form a spatially discontinuous spiral belt structure. It produces a three-dimensional mixing effect along the radial and axial directions. It can push, rub, squeeze and other comprehensive effects on the materials, achieving a short-time, low-energy Complete high homogeneity mixing effect at high consumption. Suitable for mixing plastic, dry-hard, lightweight aggregate concrete and various mortars and mortars
Project | Discharge capacity | Feed capacity | Theoretical productivity | Maximum granule of aggregate （Lithotripsy/Pebble） | Speed of mixing blade | Power of agitator | Improve motor power | Pump motor power | Shape size （Length, width and height） | |
JS1000 | 1000L | 1600L | ≤60m³/h | ≤60/80 | 19.5（R/min） | 2×8（number） | 37/18.5kw×2 | YEZ160L-4 Model 7.5KW | 80JDB-45 2.2KW | 4320×2200 ×3300 |
