Application Areas：

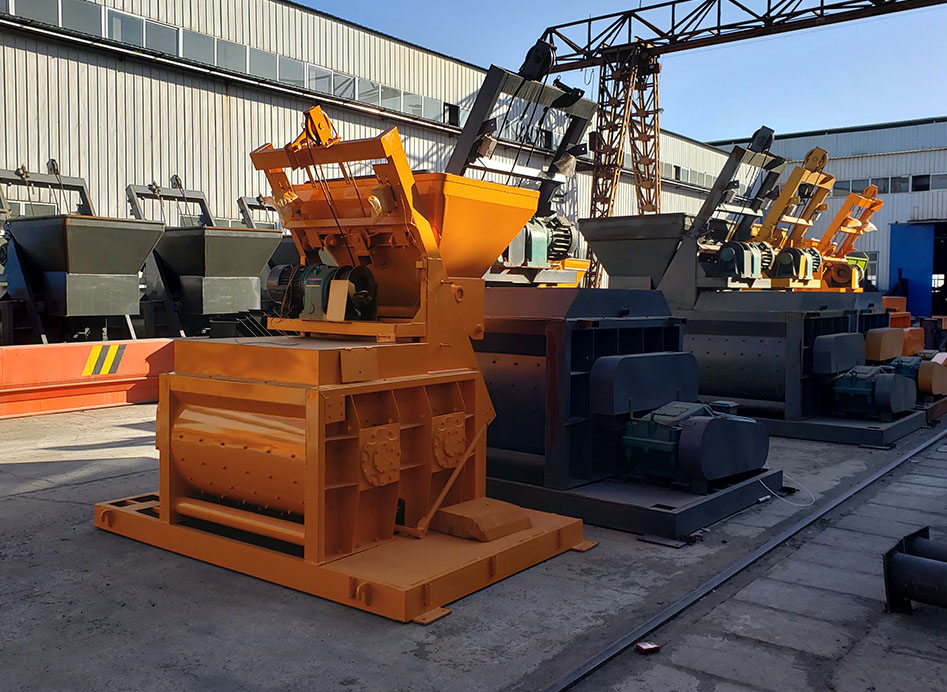

JS500 forced concrete mixer，0.5 cubic meters per discharge，Also called 0.5 cubic concrete mixer，Productivity per hour 25m³/h，Mostly used as the host of HZS25 mixing station， Can also have stand-alone independent operation with PLD series concrete batching machine(Also known as concrete batching station、Concrete batching warehouse)The dual advantages of a simple concrete mixing plant.
1. Stirring system
High alloy wear-resistant material, uniform mixing and stable; multiple shaft end sealing protection technology, no leakage of slurry, high production efficiency and long service life.
2. Unloading system
Divided into: hydraulic control, pneumatic control, manual control, through the cylinder or hydraulic cylinder, the motorized unloading hopper is realized
3. Water supply system
The throttle valve can adjust the flow of water; the total water supply is adjusted by the time relay
4. Electrical system
It has the functions of short circuit protection and overload protection; the insulating plate design is safe and reliable, and is easy to operate and maintain.
5. Reduced motor
Decrease the speed while increasing the output torque. Multiply the motor output by the reduction ratio to reduce the load inertia.
6. High degree of automation
The operating platform in the control room performs various automated operations, and computer monitoring can vividly reflect the entire production process and the conditions of each part.
JS500 is a widely used high-efficiency concrete mixer,Using motorized discharging,Can be used with dump trucks,Mainly mixing drum,Hopper loading rack,hoist mechanism,Mixing drum,Mixing blade,Mixing drum, hopper loading rack, winch mechanism, mixing drum, mixing blades.It is suitable for mixing plastic, dry-hard, lightweight aggregate concrete and various mortars and mortars. It is an ideal machine for various construction sites.
JS500 twin-shaft forced soil mixer is currently the most advanced and ideal model,It has the advantages of high degree of automation, good mixing quality, high efficiency, low energy consumption, low noise, convenient lifting, fast unloading speed, long service life of lining plates and blades, and easy maintenance.Adopting automatic discharging method, the whole machine has the advantages of convenient water volume control, strong power, low power consumption, strong power, and a built-in eddy current mixer.Can prevent warehouse consolidation and consolidation.
project | Discharge capacity | Feed capacity | Theoretical productivity | Maximum granule of aggregate （Lithotripsy/Pebble） | Speed of mixing blade | Power of agitator | Improve motor power | Pump motor power | Shape size （Length, width and height） | |
JS500 | 500L | 800L | ≤25m³/h | ≤40/50 | 31（R/min） | 2×7（number） | 18.5KW | 5.5KW | 1.1KW | 4461×3050 ×4180 |
