Application Areas：

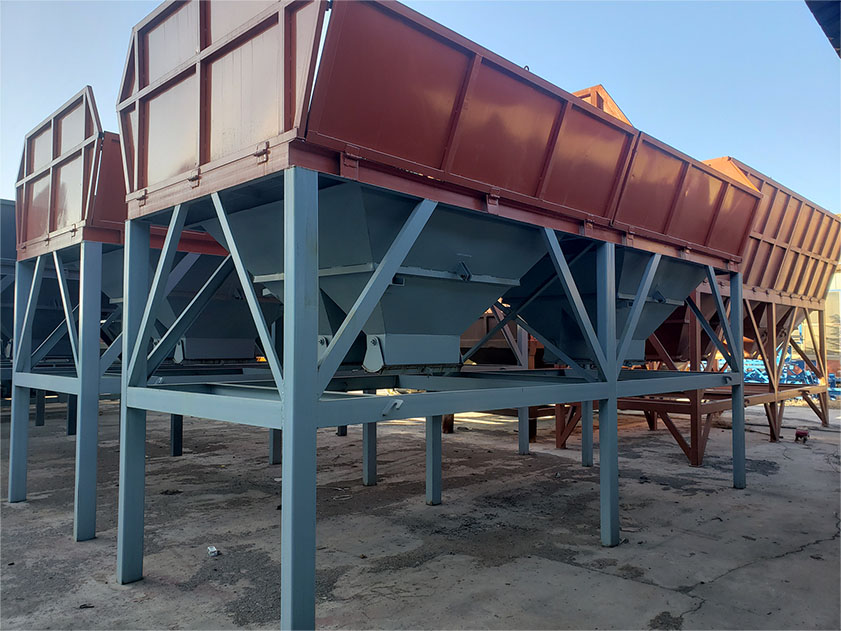

PLD2400 concrete batching machine is a sand and gravel batching device that uses a loader or belt conveyor to load materials. It can mix more than three kinds of materials. It can be used with various types of mixers and other metering devices to form a fully automatic and semi-automatic mixing station. This machine can effectively ensure the accuracy of the mix ratio of cement, sand, gravel, etc., and the use of an electronic weighing system further improves the accuracy of weighing. PLD2400 concrete batching machine is a front-end automatic batching equipment used in conjunction with a mixer. The sand and gravel batching device that uses a loader or belt conveyor to load materials can mix more than three kinds of materials. It can be used with various types of mixers and other metering devices to form a fully automatic and semi-automatic mixing station (one-way and two-way), so as to automatically complete the batching process of 3 to 6 materials (secondary concrete) such as sand, stone, cement, etc. according to the concrete mix ratio designed by the user.
(1) Large storage bin design
The storage bin has a large volume, which reduces the number of times the loader loads the material in the later stage. The storage bin is equipped with a screen to prevent large-size aggregates from entering the mixing main unit, ensuring safe and reliable operation.
(2) Humanized design
Easy to operate. It is designed in accordance with the GB10171 "Concrete Mixing Station (Building)" standard. It is so easy to operate that you only need to press one button each time; the bin door unloading angle is optimized, and the double-leaf door form ensures smooth unloading.
(3) Strong site adaptability and easy installation
It can be combined with a mixer to form a mixing station of different forms (straight or L-shaped) and different specifications. The cost is only 1/3 of the mixing station of the same specification, and it is very convenient to move and install.
(4) Accurate weighing and high batching precision
Electronic weighing, microcomputer control, digital display, remote control operation, with the advantages of accurate weighing, high batching precision, fast speed, strong control function, etc.
This series of products adopts electronic weighing, microcomputer control, digital display, and wired remote control operation. It has the advantages of accurate weighing, high batching accuracy, fast speed, strong control function, and easy operation. This series of concrete batching machines can be combined with corresponding models to form various types of combined small and medium-sized concrete mixing plants with different forms and specifications.
model | Weighing hopper capacity | Storage hopper capacity | productivity | Batching accuracy | Weighing value | Number of ingredients | Feeding height | Feeding belt speed | power | Total capacity | Overall dimension |
PLD800 | 800L | 2×1.5m³ | 48m³/h | ±2% | 2000 | 2-3species | 2400 | 3 | 3×3 | 2450 | 6000×2000 |
PLD1200 | 1200L | 4×2.5m³ | 56m³/h | ±2% | 3000 | 2-4species | 3000 | 1 | 5×3 | 4500 | 9500×2200× |
PLD1600 | 1600L | 4×5m³ | 75m³/h | ±2% | 3000 | 2-5species | 2900 | 1 | 5×3 | 5600 | 12000×2200× |
PLD2400 | 2400L | 4×10m³ | 120m³/h | ±2% | 4000 | 2-5species | 2900 | 1.6 | 11 | 85000 | 10000×3000× |
PLD3200 | 3200L | 4×18m³ | 160m³/h | ±2% | 5000 | 2-5species | 2300 | 1.6 | 11 | 10500 | 14500×3000× |
PLD4800 | 4800L | 4×25m³ | 160m³/h | ±2% | 8000 | 2-5species | 2300 | 1.25 | 11 | 14000 | 15520×3900× |
